Extraction Column Work Principle

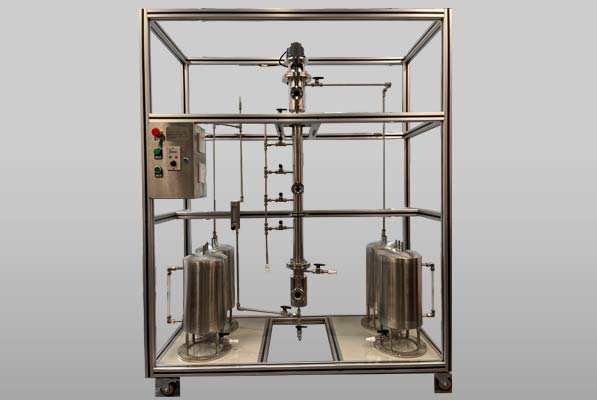

The Rotary Disc Extraction Column is comprised of five major components: oil-water separator (upper and bottom), tower body, rotary disc system, feeding and discharging system, and an electronic control system.
The inner diameter and height of the tower are customized according to the technical process materials. Multiple static rings are arranged on the inner wall of the tower at a set distance. A turbine is fixed on the central axis. The static rings divide the tower into several mixing zones; each mixing zone achieves the mixing of the two phases through the movement of the ring. At the same time, each mixing zone constitutes a theoretical stage during which the two-phase liquid achieves multi-stage countercurrent contact mixing.
The upper and bottom oil-water separators are separation components. The liquid with low density is discharged from the upper oil-water separator, while the liquid with high density is discharged from the bottom oil-water separator.
Both the upper and bottom oil-water separators are equipped with observation windows, making it easy to observe the separation interface of the two-phase liquids.
Extraction Column Technical Specification
| Model | Column Dia(mm) | Motor Power(rpm) | Material | Capacity Flux and Dimension |
| WCQT50 | 50 | 0.06 | Carbon steel304 sta inless steel316L stainless steel 2205 duplex stainless steel Hastelloy steel Quartz glass (small model) | Be designed according to the customer's material and process before the corresponding parameters can be obtained |
| WCQT70 | 7L | 0.1 | ||
| WCQT90 | 90 | 0.12 | ||
| WCQT150 | 150 | 0.25 | ||
| WCQT300 | 300 | 0.37 | ||
| WCQT400 | 400 | 0.37 | ||
| WCQT500 | 500 | 0.55 | ||
| WCQT600 | 600 | 0.55 | ||
| WCQT1600 | 1600 | 7.5 |
Material properties suitable for turbine extraction tower: 1. Density difference between two phases > 50kg/m3; 2. Viscosity < 500mPas; 3. Interfacial tension >2mN/m
Rotary Disc Extraction Column Application
Chemicals:
Extraction and back-extraction of fermentation broth (penicillin, lincomycin, traditional Chinese medicine extraction)
Washing, extraction and back-extraction of organic solvents
Acid washing, alkali washing, water washing of lipidated liquid
Extraction and back-extraction of glycosides, alkaloids and other organic substances.
Liquid-liquid solvent extraction, organic phase washing and liquid-liquid two-phase Separation
Washing of polymers or extraction
Hydrometallurgy:
Precious metals
Rare earths
Nickel/Cobalt
Extracting lithium from salt lakes
Lithium precipitation mother liquor
Recover Uranium from leachate and crude phosphoric acid solution.
Environmental:
Removal of phenol from wastewater
Recovery of T acid and H acid
Recovery of dimethylformamide from synthetic leather wastewater
DMAC/DMF wastewater treatment
Extract acetic acid from aqueous solution
Recover N,N-dimethylbenzene , pyridine, dimethyl sulfoxide, dichlorobenzene and other solvents.
