High mixing efficiency and good extraction effect
According to the requirements of different material systems, mixed structures can be flexibly combined to achieve efficient extraction.
Small amplification effect
Centrifugal force is used for separation and precise mixing, with process strengthening equipment and minimal amplification effect.
Small footprint
Compact structure, saving footprint and operating space.
Good two-phase separation effect
Using centrifugal force to separate the aqueous and organic phases, separation is fast and stable, avoiding human interference.
Low online liquid holding capacity
Internal liquid holding capacity is small, such as the liquid holding capacity of the 6m ³/h treatment equipment can be 35L.
Saving
Low power, fully enclosed, efficient, environmentally friendly and energy-saving equipment.

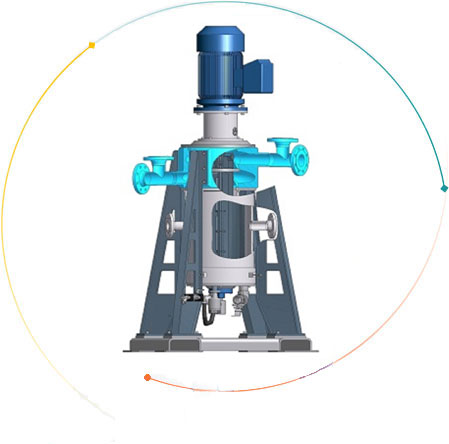

Liquid liquid Centrifugal extractor Work Principle
1) Liquid-liquid Mixed mass transfer process
The two-phase solutions enter into the liquid-liquid mixing area of inside the shell from the two phase inlet ,which in a certain proportion to make the two phases mix
and disperse quickly and complete the liquid-liquid mixing mass transfer process.
2)Two phase Liquid-liquid separation process
The mixed liquid enters the drum under the action of the vortex disc or feeder. Under the action of centrifugal force, the heavy phase liquid gradually moves away
from the center of the drum and towards the drum wall in the upward flow process; The light phase liquid with low density gradually moves away from the drum
wall and towards the center. The clarified two-phase liquid finally enters the collection chamber through their respective weir plates and flows out from the light
phase outlet to complete the two-phase separation process.
Liquid liquid Centrifugal extractor Skid-Mounted Systems
More than ten years of experience, Prosea Tech designing and manufacture liquid-liquid extraction (LLE) / solvent extraction equipment. Prosea Liquid-liquid Centrifugal Extractor are engineered to fulfill the challenging purification requirements that exist in the alternative energy, renewable chemicals, flavor, metals, petrochemical and hydrocarbons, pharmaceuticals, polymers, and specialty chemicals industries. Prosea do more than sell liquid-liquid extraction equipment; Prosea supply solutions to difficult liquid-liquid separation challenges. In order to meet the requirements of our clients, we developed the Skid system or platform.
Advantages of Centrifugal extraction equipment Skid-Mounted Systems
1. High degree of automation and simple operation.
2. It can realize the closed operation of the extraction system, and the operating environment is good.
3. The equipment is compact in structure and occupies a small area.
4. Skids are assembled as units, so skid mounted process equipment can be more easily disassembled and reassembled when required. This enables benefits such as: The relocation of skid-mounted equipment in an easy and secure manner.
Liquid liquid Centrifugal Extractor Technical Specification
| Model | Rotor Drum | Extractor | |||
| Dia(mm) | Rotor Speed(rpm) | Capacity Phase Flux(L/h) | Motor Power(kw) | Dimension(mm) | |
| LXC-80 | 80 | 2800 | 10-200 | 0.75 | 520×530×1150 |
| LXC-150 | 150 | 2800 | 50-800 | 1.5 | 640×640×1350 |
| LXC-250 | 250 | 1400 | 100-3000 | 3 | 770×770×1500 |
| LXC-350 | 350 | 1400 | 200-8000 | 4 | 980×980×1750 |
| LXC-450 | 450 | 1400 | 500-12000 | 5.5 | 1100×1100×1850 |
| LXC-550 | 550 | 900 | 1000-20000 | 7.5 | 1250×1250×1950 |
| LXC-650 | 650 | 900 | 2000-35000 | 11 | 1450×1450×2350 |
