As core strategic metals in high-end fields such as electronics, aerospace, and superconductivity, tantalum and niobium have long faced industry pain points in wet extraction and separation due to their highly similar chemical properties and complex associated impurities in minerals, including small separation coefficients, lengthy processes, difficulty in meeting purity standards, high extractant loss, and heavy environmental pressure. With the surging market demand for high-purity tantalum and niobium products, there is an urgent need for stable, reliable extraction equipment that is suitable for large-scale production and balances efficiency and cost. As a classic main equipment for wet separation of tantalum and niobium, the mixer-settler, with its mature technology, strong working condition adaptability and large-scale application advantages, remains the core choice for the industry to solve separation problems and meet the needs of technological upgrading.

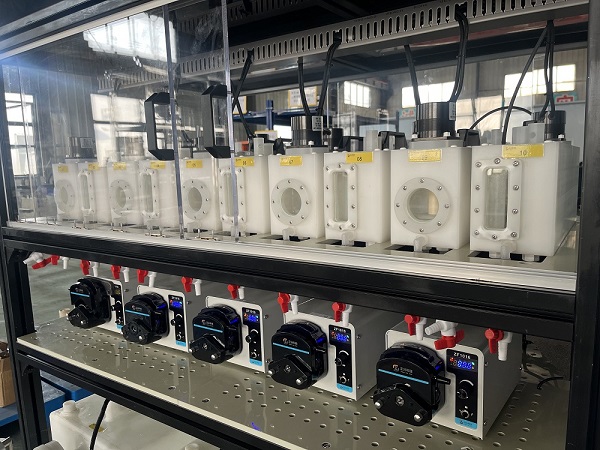

The mixer-settler (also known as extraction tank or extraction box) is a stage-wise contact liquid-liquid extraction equipment. Its core consists of a mixing chamber, a settling chamber, a stirring system, phase ports and an overflow structure, which is suitable for mainstream extraction systems such as HF-MIBK for tantalum and niobium.
Mixing and Mass Transfer: Tantalum and niobium leachate (aqueous phase) and extractant (organic phase) enter the mixing chamber in proportion to the process. The stirring paddle forms turbulence, dispersing the two phases into micron-sized droplets, quickly establishing an interphase mass transfer interface, realizing the selective migration of tantalum and niobium ions from the aqueous phase to the organic phase, and completing single-stage extraction mass transfer.
Gravitational Settling and Phase Separation: The mixed liquid enters the settling chamber through overflow, and naturally settles by using the density difference between the aqueous phase and the organic phase. The light and heavy phases quickly coalesce and stratify. The phase separation interface is accurately controlled through the interface regulating tube. The separated organic phase (loaded with tantalum and niobium) and aqueous phase (raffinate) enter the next stage or subsequent sections respectively, completing the single-stage separation cycle.
Multi-Stage Countercurrent Series Connection: In industrial production, multi-stage countercurrent series connection mode is mostly adopted. The two phases flow in opposite directions to form a continuous concentration gradient, which gradually strengthens mass transfer and separation, ensures the separation efficiency and product purity of tantalum and niobium, and adapts to the multi-stage extraction, stripping and acid washing processes required for tantalum and niobium separation.
The mixer-settler is the most long-standing and technologically mature equipment used in tantalum and niobium hydrometallurgy. The single-stage efficiency is stably between 80% and 90%, and efficient separation of tantalum and niobium and deep removal of impurities can be achieved after multi-stage series connection. The equipment has a large liquid holding capacity and high operational flexibility, which can adapt to complex working conditions such as fluctuations in the concentration of tantalum and niobium raw materials and changes in solid content. It is not easy to experience a sudden drop in efficiency due to feed fluctuations, ensuring the stability of continuous production and reducing the risk of process out of control.
The equipment is composed of basic components such as tank body, stirring, overflow and phase separation, without complex and precision structures. It is low in manufacturing, installation and maintenance difficulty, and the initial investment and operation and maintenance costs are much lower than those of new equipment such as centrifugal extractors. For the strong corrosive working conditions of tantalum and niobium extraction, corrosion-resistant materials such as PP, PVC and FRP can be selected for customization, which is suitable for strong acid systems such as HF, extending the service life of the equipment and reducing the cost of material replacement.
The number of stages, the ratio of mixing/settling chambers and the phase port structure can be flexibly designed to adapt to the whole process of tantalum and niobium separation, including extraction section, niobium stripping and tantalum extraction section, acid washing and impurity removal section, and solvent regeneration section. It can not only handle clear liquid extraction, but also be optimized into a pulp extraction tank, which is suitable for raw materials such as low-grade tantalum and niobium ores and metallurgical residues, without complex pretreatment, improving resource utilization. At the same time, it supports batch and continuous production modes to meet the production needs of tantalum and niobium smelting enterprises of different scales.
The performance of the single-stage design parameters is stable after scaling, and ten-thousand-ton level processing capacity can be achieved through multi-stage series connection, making it the mainstream equipment choice for current large-scale tantalum and niobium smelting. Compared with extraction towers and centrifugal extractors, the scaling process of the mixer-settler does not require complex parameter conversion, the process commissioning cycle is short, and it can quickly realize the smooth transition from laboratory to industrial production, helping enterprises expand production capacity and improve market supply capacity.
Aiming at the shortcomings of traditional mixer-settlers in tantalum and niobium separation, the industry further improves equipment performance through structural optimization and process matching:
Settling Chamber Optimization: Inclined plates and coalescing fillers are added to shorten the phase separation time, reduce organic phase entrainment and aqueous phase residue, lower extractant loss, and improve phase separation efficiency.
Stirring System Upgrade: Customized paddles and frequency conversion speed regulation are adopted to accurately control the mixing intensity, avoid over-mixing emulsification, adapt to the mass transfer needs of the tantalum and niobium extraction system, reduce inter-stage backmixing, and improve separation purity.
Intelligent Control: Integrate online monitoring and automatic adjustment systems for flow rate, acidity and interface height to realize precise control of process parameters, reduce manual intervention, improve separation stability and product consistency, and adapt to the strict requirements of high-purity tantalum and niobium production.
Environmental Protection Upgrade: Optimize the tank body sealing structure to reduce the volatilization of extractants such as MIBK, and supporting solvent recovery systems to reduce VOCs emissions and solvent consumption, in line with environmental protection policies and green production trends.
In the field of tantalum and niobium hydrometallurgy, relying on its core advantages of mature stability, controllable cost, strong adaptability and reliable scaling, the mixer-settler remains the main equipment to solve the pain points of tantalum and niobium separation and meet large-scale production at present and in the future. Especially for small and medium-sized smelting enterprises and traditional process upgrading projects, the mixer-settler is the most cost-effective choice; even with the rapid development of new centrifugal extractors, its irreplaceability in large-scale and stable production scenarios is still significant.
With the continuous growth of demand for high-purity tantalum and niobium in high-end electronics, new energy and other industries, the mixer-settler will continue to iterate through structural optimization, intelligent upgrading and environmental adaptation, form a complement with new extraction technologies, and jointly promote the wet extraction and separation process of tantalum and niobium towards the direction of high efficiency, energy saving, green and high purity, providing solid equipment support for the efficient utilization of strategic rare metal resources and industrial upgrading.
