In the field of vanadium hydrometallurgical extraction, long-standing issues such as complex acidic leachate systems, strong interference from impurity co-extraction, low phase separation efficiency, and high solvent loss have restricted production efficiency. Traditional extraction equipment struggles to adapt to the vanadium extraction working conditions characterized by high solid content and strong corrosion, leading to insufficient resource recovery rate, high operating costs, and great pressure to meet environmental standards. As a technically mature and highly adaptable core liquid-liquid extraction equipment, mixer-settlers (mixer-settlers) have become the key equipment to solve the pain points of the vanadium extraction industry and meet the needs of large-scale industrial extraction, thanks to their high solid content tolerance, structural stability, and easy operation and maintenance. This article analyzes the core characteristics, industry adaptation advantages, application optimization directions, and industrial value of the equipment, providing professional references for the selection and technical upgrading of vanadium extraction process equipment.

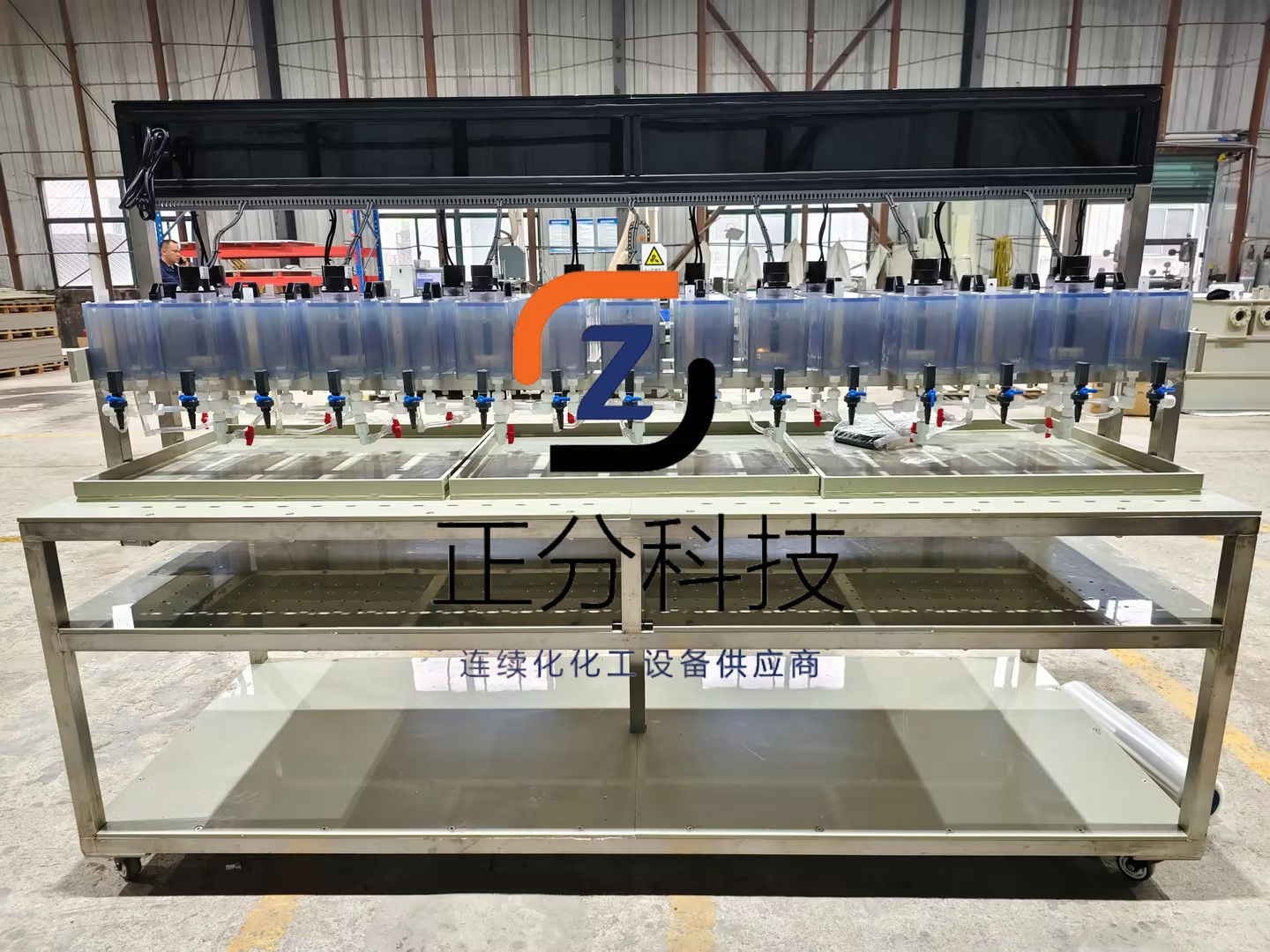

Mixer-settlers are stage-wise contact extraction equipment based on the principle of gravity phase separation. After being optimally designed for vanadium extraction scenarios, they form a dedicated equipment form suitable for acidic systems and high-impurity working conditions. The main body of the equipment is composed of multiple stages of mixing chambers and clarification chambers connected in series. A stirring device is built into the mixing chamber to complete the full mass transfer between the vanadium-containing aqueous phase and the organic extractant. Subsequently, the mixed liquid enters the clarification chamber, where natural sedimentation and separation are achieved relying on the density difference between the two phases, completing a single-stage extraction cycle.
In response to the characteristics of vanadium extraction working conditions, such as strong acidity (pH < 1.5), high corrosion, and high solid content (up to 5%-20%), the special mixer-settler for vanadium extraction adopts a customized structural design: parts in contact with materials are made of titanium alloy, Hastelloy, or reinforced polypropylene, which can resist the erosion of strong acidic media such as sulfuric acid and hydrochloric acid, avoiding material pollution and service life reduction caused by equipment corrosion; the stirring system of the mixing chamber is adapted to high-viscosity and high-solid-content materials, optimizing the stirring paddle type and rotational speed parameters to prevent emulsification while ensuring sufficient mass transfer; the clarification chamber is equipped with adjustable overflow baffles and phase interface control devices, adapting to the fluctuations of the physical properties of the two phases during vanadium extraction, stabilizing the phase separation effect, and reducing the entrainment loss of the organic phase.
Compared with equipment such as centrifugal extractors and extraction towers, the application value of mixer-settlers in the vanadium extraction field is concentrated in three dimensions: high adaptability to complex working conditions, low cost investment, and stable industrial operation, which accurately matches the core needs of the industry.
Vanadium ore leachate generally contains solid impurities such as ore slag particles and silica colloids, with a solid content often exceeding 5%, which is likely to cause blockage of centrifugal extractors and a sharp drop in extraction tower efficiency. With the design of open flow channels and large-capacity clarification chambers, mixer-settlers have extremely high tolerance for high-solid-content materials, and can directly treat vanadium leachate with a solid content of less than 20% without complex pre-treatment filtration processes, greatly simplifying the process flow and reducing the cost of pre-treatment in the early stage. Especially in scenarios such as stone coal vanadium extraction and acid leachate extraction of vanadium-titanium magnetite, there is no need to worry about blockage caused by solid particle deposition, ensuring continuous and stable operation, and adapting to the efficient extraction needs of low-grade vanadium ore resources.
The vanadium extraction process is sensitive to pH value, phase separation time, and mixing intensity. A pH deviation from the range of 2.3 ± 0.05 is likely to cause vanadium hydrolysis loss or co-extraction of iron and aluminum impurities. The mixer-settler adopts a stage-wise independent control mode, and the parameters of mixing and clarification at each stage can be adjusted independently, which can accurately match the process window of vanadium extraction. By optimizing the mixing time and clarification duration, the selective extraction efficiency of vanadium is improved. At the same time, the equipment has a simple operation logic and low sensitivity of parameter adjustment, and no frequent intervention is required during operation. Even if the material composition fluctuates, it can be quickly adjusted to a stable state, reducing the skill threshold of operators and the production fluctuations caused by human errors.
Vanadium extraction is mostly large-scale production of ten thousand tons level, and the initial investment of equipment and long-term operation and maintenance costs directly affect the project benefits. The mixer-settler has a simple structure and convenient modular assembly. The initial investment is 30%-50% lower than that of centrifugal extractors, the delivery cycle is short, and it can be put into production quickly. The equipment has no high-speed rotating parts, and the core wearing parts are only stirring seals and baffles, which are easy to replace and have low maintenance costs. The annual operation and maintenance cost is only about 20% of that of centrifugal extractors. In addition, the number of series stages of the equipment can be flexibly adjusted to adapt to extraction scenarios with different vanadium concentrations and purity requirements. It can not only meet small-batch pilot production, but also be expanded to large-scale industrial production lines, with strong investment flexibility.
In response to the shortcomings of traditional mixer-settlers, such as slow phase separation and high solvent volatilization loss, and adapting to the trend of high efficiency and green upgrading of the vanadium extraction industry, the current equipment has achieved a number of technical optimizations to further improve industry adaptability.
The single-stage phase separation of traditional mixer-settlers takes 30-90 minutes, which restricts the overall processing efficiency. The special mixer-settler for vanadium extraction optimizes the internal structure of the clarification chamber by adding coalescing fillers and inclined phase separation plates, accelerating the coalescence and sedimentation of two-phase droplets, shortening the phase separation time to 15-30 minutes, and increasing the single-stage processing capacity by more than 30%. At the same time, the stirring intensity and flow field distribution of the mixing chamber are optimized to reduce excessive breakage of liquid droplets, reduce the risk of emulsification, reduce the difficulty of phase separation, and ensure that the vanadium extraction rate is stably above 95%.
Traditional open mixer-settlers are prone to organic solvent volatilization and acid mist leakage, which not only increases the reagent cost, but also poses environmental hazards. The new type of mixer-settler for vanadium extraction adopts a semi-closed or fully closed tank design, combined with an exhaust gas collection system, reducing the solvent volatilization loss rate from more than 5% to less than 1%, and the recycling rate of the extractant is increased to more than 98%. At the same time, the inter-stage sealing structure is optimized to eliminate liquid channeling and leakage problems, reduce the discharge of vanadium-containing wastewater, and conform to the requirements of green production and environmental protection compliance in the metallurgical industry.
Adapting to the trend of industrial intelligence, the mixer-settler for vanadium extraction can be integrated with online pH monitoring, automatic phase interface control, precise flow regulation and other systems to realize full-process automatic control of the extraction process. By real-time monitoring parameters such as material pH value, two-phase interface height, and mixing speed, the stirring speed, feed flow rate and clarification time are automatically adjusted to accurately maintain the optimal process conditions for vanadium extraction. It not only reduces manual intervention, but also stabilizes the purity of vanadium products, reduces the co-extraction rate of impurities, and helps produce high-purity vanadium products.
Against the background of the booming vanadium redox flow battery energy storage industry and the surging demand for high-end vanadium materials, efficient vanadium resource extraction has become a core link in industrial development. With the advantages of stability and reliability, strong working condition adaptability, and economic cost, mixer-settlers are widely used in fields such as stone coal vanadium extraction, vanadium-titanium magnetite extraction, and waste vanadium electrolyte regeneration, becoming the mainstream selection for small and medium-sized vanadium smelting enterprises and large-scale production lines.
From the perspective of industrial value, the application of mixer-settlers effectively improves the vanadium resource recovery rate, increasing the recovery rate of traditional processes from about 85% to 95%-98%, and reducing resource waste; at the same time, it reduces the comprehensive production cost, greatly reduces the consumption of extractant per ton of vanadium and operation and maintenance costs, and improves the economic benefits of enterprises. With the continuous optimization of vanadium extraction processes and the continuous upgrading of equipment materials and structures, mixer-settlers will further adapt to the extraction needs of higher purity and larger scale, complement and cooperate with new extraction technologies, and jointly promote the high-quality development of the vanadium metallurgical industry towards efficiency, greenization and economy.
