In hydrometallurgy, electroplating, steel pickling and chemical production processes, direct discharge of large volumes of zinc-bearing hydrochloric acid waste liquid not only causes severe water and soil pollution but also leads to massive loss of valuable zinc metal resources. Traditional neutralization precipitation methods feature high treatment costs, large sludge output and low metal recovery rates, failing to meet dual requirements of environmental protection and economic efficiency. With increasingly stringent environmental policies and growing awareness of resource recycling, zinc extraction from hydrochloric acid waste liquid via mixer-settlers has become the mainstream technical route in the industry. Boasting high separation efficiency, stable operation, controllable zinc purity and continuous production capacity, this technology effectively addresses core pain points including difficult zinc recovery in hydrochloric acid systems substandard waste liquid treatment and resource waste, providing a reliable solution for enterprises to reduce hazardous waste generation, regenerate resources and cut costs while boosting efficiency.
Hydrochloric acid system waste liquid is characterized by high acidity, high chloride ion content and complex composition, often accompanied by impurity ions such as iron, copper, manganese and calcium, which pose significant challenges to the separation and recovery of zinc.
Most traditional treatment methods adopt alkali neutralization to produce zinc hydroxide sludge, which not only fails to obtain high-purity zinc products but also generates a large amount of hazardous waste, leading to excessively high subsequent disposal costs. Meanwhile, hydrochloric acid itself has strong corrosiveness and volatility, making conventional equipment prone to corrosion and poor sealing, resulting in harsh working conditions and high operation and maintenance costs.
The industry urgently needs a separation technology with high selectivity for zinc in high-chlorine and strong acid environments that can operate continuously and stably. Solvent extraction, with its excellent selectivity and adaptability, has become the preferred process for zinc extraction from hydrochloric acid waste liquid, and the mixer-settler serves as the core equipment to realize this process.
Using hydrochloric acid waste liquid as raw material, the core of solvent extraction for zinc recovery lies in the selective complexation ability of organic extractants for zinc ions, achieving efficient separation of zinc from impurity ions within the mixer-settler.
Under acidic conditions, the extractant in the organic phase forms hydrophobic complexes with zinc ions in the aqueous phase, transferring to the organic phase; impurities such as iron and calcium remain in the raffinate. After removing co-extracted impurities through the washing section, zinc is stripped from the organic phase using a stripping agent to obtain high-purity zinc-bearing solution, which can be further processed into zinc sulfate, zinc chloride, zinc oxide or electrowon zinc. The organic phase is recycled for repeated use.
The entire process completes mixing, mass transfer and clarification phase separation in the mixer-settler, featuring a short process flow and thorough phase separation, making it particularly suitable for zinc resource recovery from low-concentration, high-flow waste liquid in hydrochloric acid systems.

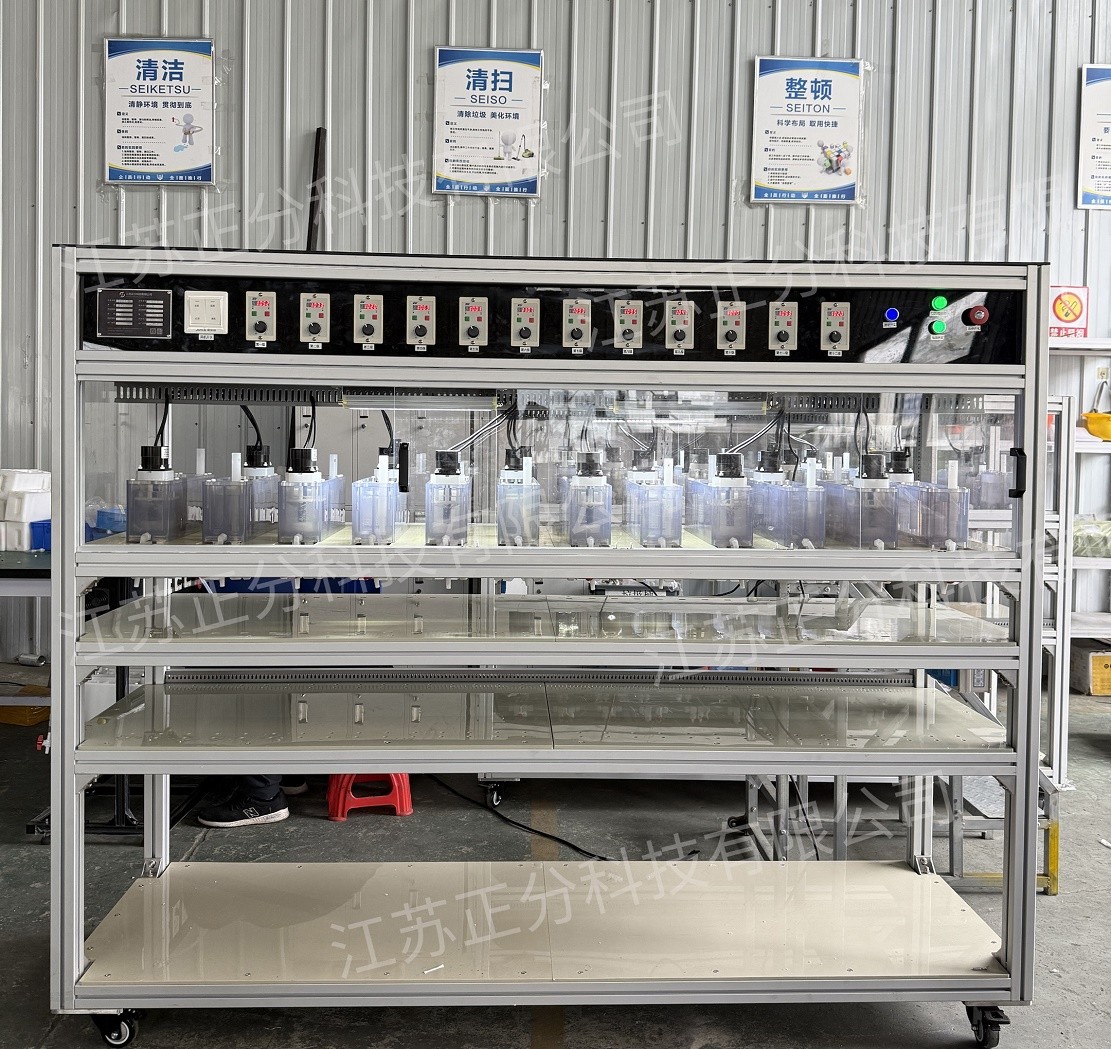

As the most mature extraction equipment for industrial applications, mixer-settlers offer distinct advantages in zinc extraction from hydrochloric acid waste liquid scenarios:
Strong Corrosion ResistanceThe main equipment body can be made of anti-corrosion materials including PVC, PP and PPH, adapting to high-concentration hydrochloric acid environments with long service life and no leakage risks, solving the problem of strong acid corrosion.
Flexible Cascade Structure and Controllable Separation StagesAccording to zinc content and impurity levels of the waste liquid, the number of extraction, washing and stripping stages can be flexibly designed to realize efficient zinc enrichment and deep purification, ensuring the purity of final products.
Continuous Operation and Large Processing CapacitySupports continuous feeding and discharging, suitable for large-scale industrial hydrochloric acid waste liquid treatment, with stable processing capacity ranging from several cubic meters to hundreds of cubic meters per hour.
Excellent Phase Separation and Low Entrainment RateThe tank body is equipped with internal clarification chambers and mixing chambers, with optimized stirring and diversion structures for clear separation of organic and aqueous phases, reducing interphase entrainment, lowering organic consumption and improving recovery economy.
Simple Operation and Low Maintenance CostStable equipment structure without complex transmission components, enabling long-term automated operation after commissioning with minimal manual intervention, ideal for long-term continuous operation in hazardous waste treatment sites.
The typical process flow of zinc extraction from hydrochloric acid waste liquid via mixer-settlers is divided into four major units:
Pretreatment UnitFilter and remove suspended solids from hydrochloric acid waste liquid, and adjust acidity if necessary to prevent solid impurities from entering the extraction system and affecting phase separation efficiency.
Extraction UnitWaste liquid and organic extractant fully contact in the mixing chamber of the mixer-settler, with zinc ions transferring to the organic phase. The acidity of the raffinate can be recovered or further treated to achieve preliminary separation of zinc and impurities.
Washing and Purification UnitConduct acid washing on the loaded organic phase to remove a small amount of co-extracted impurities such as iron and copper, improving the purity of zinc products and laying a foundation for subsequent high-value utilization.
Stripping and Regeneration UnitUse sulfuric acid or pure water as stripping agent to strip zinc from the organic phase in the stripping section, obtaining high-purity zinc-bearing solution; the regenerated organic phase is recycled back to the extraction system to reduce operating costs.
Zinc extraction from hydrochloric acid waste liquid via mixer-settlers achieves breakthroughs in multiple key indicators:
Zinc recovery rate reaches over 95%, much higher than traditional precipitation methods;
Produced zinc-bearing solution has high purity, which can be directly used to produce industrial-grade zinc chloride, battery-grade zinc sulfate and other products;
Treated waste liquid has stable acidity and qualified metal ion content, suitable for reuse or safe discharge;
Significantly reduces hazardous waste sludge output, lowering enterprises' risk of environmental penalties and disposal costs.
This technology has been widely applied in scenarios such as pickling waste liquid, metallurgical tail liquid and chemical by-product hydrochloric acid waste liquid, truly realizing "hazardous waste recycling and resource high-value utilization", bringing significant economic and environmental benefits to enterprises.
Efficient, economical and environmentally friendly zinc extraction has long been an urgent industry problem in the field of hydrochloric acid system waste liquid treatment. With advantages of acid corrosion resistance, continuous stability, high separation efficiency and adaptability to large-scale production, mixer-settlers have become the core equipment for zinc extraction from hydrochloric acid waste liquid. The combination of mature solvent extraction process and standardized mixer-settler equipment not only realizes efficient recovery and high-value utilization of zinc resources but also reduces hazardous waste output from the source, meeting increasingly strict environmental protection requirements. It is a preferred technical solution with practicality and economy in the current field of zinc extraction from hydrochloric acid waste liquid.
