Mixer-Settlers: A Top Choice for Liquid/Liquid Extraction
Mixing-settler is a step-by-step contact extraction equipment, which is composed of a stirring system, a mixing tank, a settler tank.
Also it is a insoluble in each level of equipment. The two liquid phases of the system will undergo two processes of stirring and mixing
and clarification and phase separation, so as to realize the mass transfer and separation process.

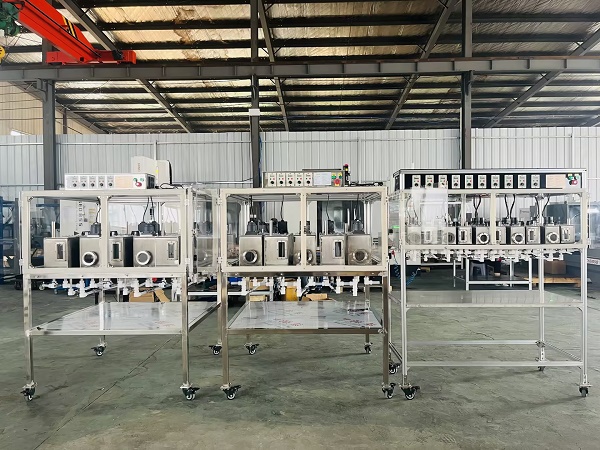

Case specification:
Material: 316L S.S.
Mixing volume: 6L /1L
Rotating Speed: 0-1500 rmp(Adjustable)
Each stage can be freely connection and independent control
Multi-stage counter-current, multi-stage cross-flow extraction or free connection stage-inter-stage;

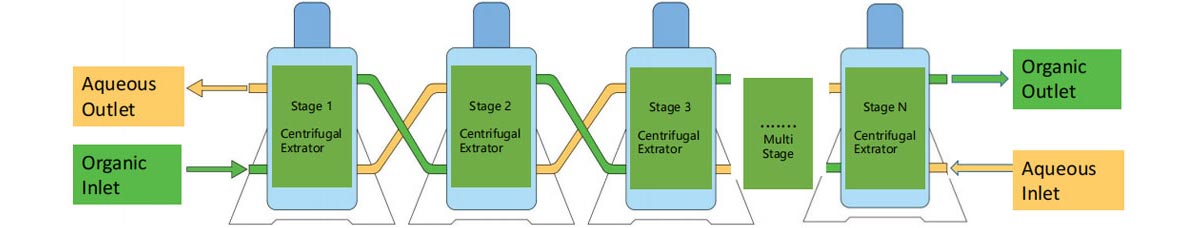

Solution：Multistage Liquid–Liquid Countercurrent Continuous Extraction
Multistage Liquid–Liquid Process Description:
1. The Multistage Liquid–Liquid Extraction process is not limited to four-stage pickling, alkali washing and water washing, and the number of countercurrent washing stages can be increased according to the actual situation;
2. The Multistage Liquid–Liquid Extraction process is suitable for separating organic mixtures immiscible with water such as acetochlor, alachlor, etc.;
3. The Multistage Liquid–Liquid Extraction process relies on centrifugal separation (hundreds to thousands of times the gravity under the same conditions), and the separation efficiency is high;
4. The Multistage Liquid–Liquid Extraction process equipment occupies a small area, low power consumption, and less residual liquid, which can realize the continuous production of the acetochlor washing
process section;
Mixer settlers are a class of Mixing Separation equipment used in the solvent extraction process. A mixer settler reactor consists of a first stage that mixes the phases together followed by a quiescent settling stage that allows the phases to separate by gravity. Mixer Settler is made by overall injection molding, without bonding or weld seams which by Prosea Tech design and manufacture.
Mixer Settler Mixing Flux：0.25-68L/H
Customized：YES
Prosea Liquid–Liquid centrifugal extractor is a new type of liquid-liquid extraction equipment developed by our company after many years of research, the Liquid–Liquid extraction equipment could realize mixed and mass transfer, reaction, extraction, washing and separation and many other functions. It has widely application in Pharmaceutica, Chemical, Food, Hydrometallurgy, Environmental and so on.
Mixing Flux：1000-350000 L/H
Model: LXC-150; LXC-250; LXC-350
Customized：YES
