Wet process phosphoric acid extraction and purification equipment

The phosphoric acid produced by decomposing phosphate rock with sulfuric acid, nitric acid, or hydrochloric acid is collectively referred to as wet process phosphoric acid, and the method of decomposing phosphate rock with sulfuric acid to produce phosphoric acid is the most basic method in the production of wet process phosphoric acid.

The reaction formula for rock decomposition is represented as follows:
Ca5F(PO4)3+10HNO3 == 3H3PO4 + 5Ca(NO3)2 + HF （1-1）
Ca5F (PO4)3 + 10HCl == 3H3PO4 + 5CaCl2 + HF （1-2）
Ca5F(PO4)3+5H2SO4+ nH2O == 3H3PO4 + 5Ca SO4·nH2O +HF （1-3）
When the reaction stop, how to separate the calcium salt ? this is the key point to produce the phosphoric acid economically.

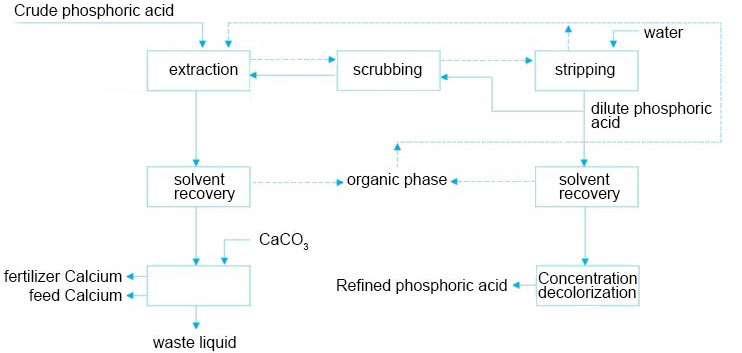

Solution：Multistage Liquid–Liquid Countercurrent Continuous Extraction

Multistage Liquid–Liquid Process Description:
1. The Multistage Liquid–Liquid Extraction process is not limited to four-stage pickling, alkali washing and water washing, and the number of countercurrent washing stages can be increased according to the actual situation;
2. The Multistage Liquid–Liquid Extraction process is suitable for separating organic mixtures immiscible with water such as acetochlor, alachlor, etc.;
3. The Multistage Liquid–Liquid Extraction process relies on centrifugal separation (hundreds to thousands of times the gravity under the same conditions), and the separation efficiency is high;
4. The Multistage Liquid–Liquid Extraction process equipment occupies a small area, low power consumption, and less residual liquid, which can realize the continuous production of the acetochlor washing process section;

Relative equipment

Mixer Settler

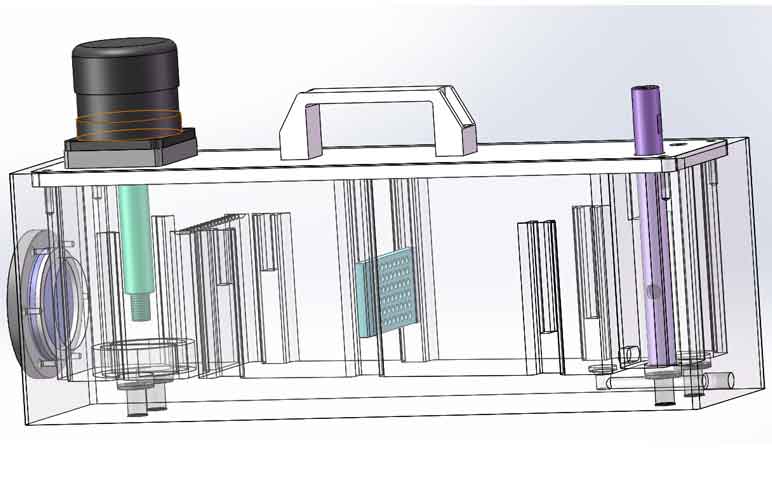

Mixer settlers are a class of Mixing Separation equipment used in the solvent extraction process. A mixer settler reactor consists of a first stage that mixes the phases together followed by a quiescent settling stage that allows the phases to separate by gravity. Mixer Settler is made by overall injection molding, without bonding or weld seams which by Prosea Tech design and manufacture.

Mixer Settler Mixing Flux：0.25-68L/H
Customized：YES

Read More > Get Price

Liquid–Liquid Centrifugal Extractor

Prosea Liquid–Liquid centrifugal extractor is a new type of liquid-liquid extraction equipment developed by our company after many years of research, the Liquid–Liquid extraction equipment could realize mixed and mass transfer, reaction, extraction, washing and separation and many other functions. It has widely application in Pharmaceutica, Chemical, Food, Hydrometallurgy, Environmental and so on.

Mixing Flux：1000-350000 L/H
Model: LXC-150; LXC-250; LXC-350
Customized：YES

Read More > Get Price
